Take it, stick it, measure. That’s the promise of AddSensors flexible sensors—ultra-thin, surface-mountable, adhesive-based sensor solutions that enable fast, accurate, and cost-effective monitoring for a wide range of parameters. Designed to eliminate the complexity of traditional soldered sensor integration, these flexible stickers make it easier than ever to monitor environmental and chemical properties across industrial, medical, and consumer applications.

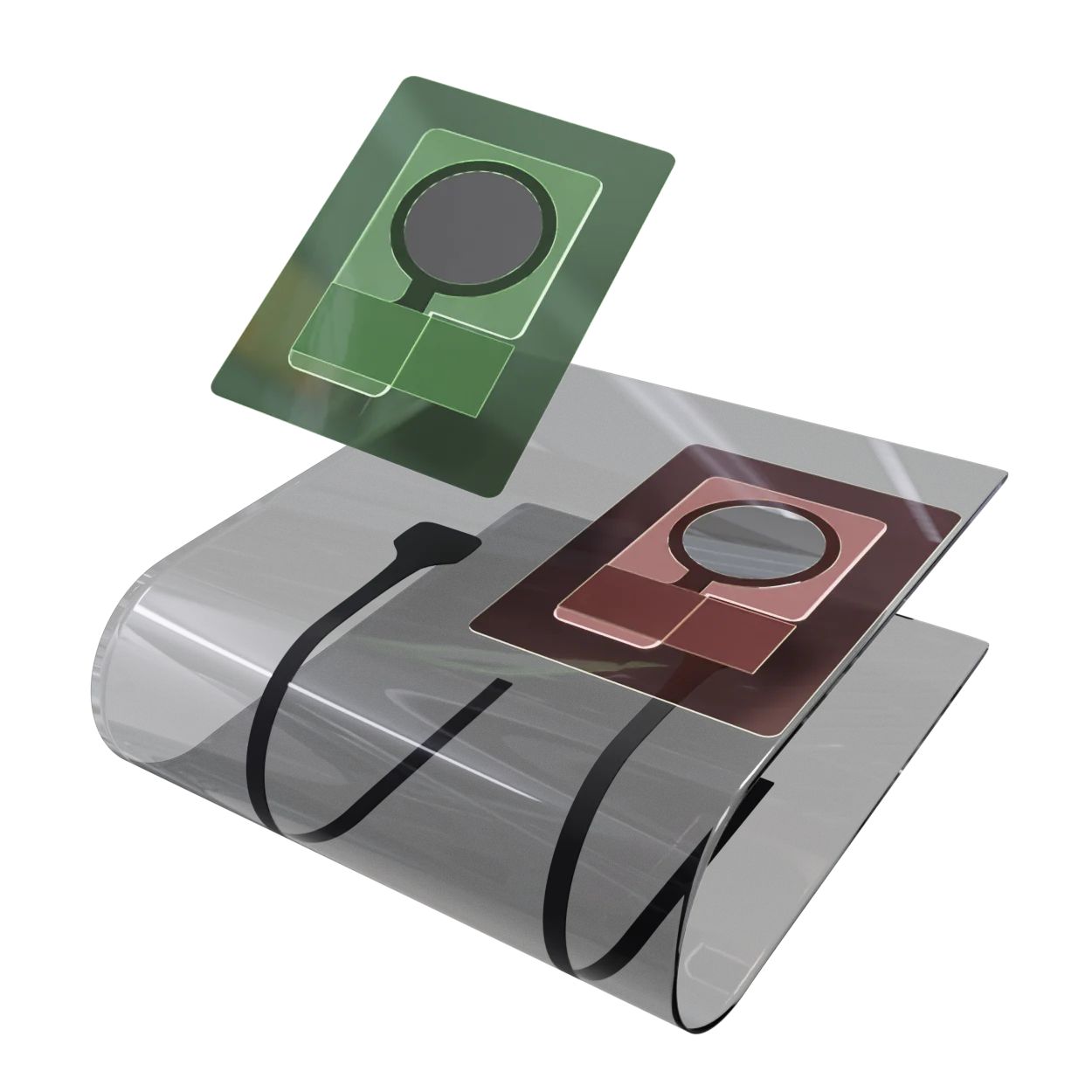

At the heart of the AddSensors flexible sensors portfolio is simplicity. These smart sensor stickers are based on a foil design that allows for fast deployment—no reflow soldering or mechanical mounting required. They can be adhered directly to your PCB or flexible circuit using electro-conductive adhesive, ensuring both electrical contact and mechanical fixation in a single step.
A Versatile Line-Up for Targeted Sensing
AddSensors flexible sensors are available in a variety of models to measure a wide range of physical and chemical properties. This includes:
- Temperature Sensors (TS01–TS03): Designed for accurate thermal monitoring in space-constrained applications, using resistive measurement principles.
- Moisture Sensors (HS01–HS03): Track relative humidity changes for environmental monitoring and quality assurance.
- pH Sensors (PS01–PS04): Optimised for continuous chemical monitoring in medical, wastewater, or industrial settings.
- Ion-Selective Electrodes (K⁺, Na⁺, Ca²⁺, NH₄⁺): Measure ion concentrations via selective membranes for biochemical or agricultural use.
- Electrical Conductivity (EC01): Detects changes in ionic concentration in liquids, critical for water quality applications.
- Force and Pressure Sensors (FS01–FS03): Use capacitive or resistive measurement techniques for physical interaction or tactile sensing.
- Thermocouple (TC01): Standardised foil-based thermocouple for direct heat measurement in dynamic environments.
These AddSensors flexible sensors are ideal for integration into your existing IoT or embedded platforms. Their adhesive form factor makes them highly suitable for prototyping, low-volume production, and continuous monitoring applications where reusability and convenience are key.
Integration Made Simple
Engineers can quickly design a periphery PCB layout with open contact pads, then apply the appropriate AddSensors sticker using their provided datasheet guidelines. Once adhered, these flexible sensors connect to standard measurement electronics—no custom hardware required. Whether you’re connecting to a Bluetooth module, an MCU-based ADC input, or a high-resolution signal chain, the system is fully scalable.
Designed for Continuous Monitoring
While not intended for high-precision, laboratory-grade analysis, AddSensors flexible sensors excel in trend detection and condition monitoring. That makes them perfect for medical diagnostics, food safety, HVAC systems, smart agriculture, and environmental sensing—applications where changes over time matter more than single-point readings.
