NexGen Helios NL020S 20W LED Power Module Sample

Evaluation Board

ipXchange, Electronics components news for design engineers 310 310

Products


Manufacturers


Applications

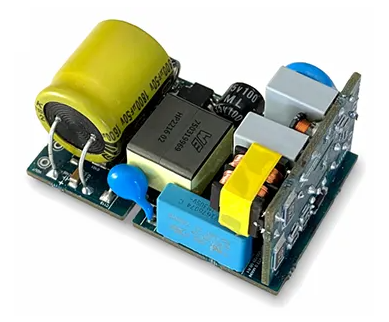

NexGen’s Helios NL20S 20W LED Power Module leverages NexGen’s Vertical GaN technology to provide a compact module with twice the power density of industry-standard alternatives. The devices comes in a 2.09” x 1.26” x 1.0”, 363 g form factor with a power density of 7.6 W/in3.

Light output driven by this device is of high quality and flicker free with smooth dimming and dim-to-off capabilities. Metering and fault reporting or the integration of dimming protocols is easily enabled with the NL20S’ standard interface for configuration, control, and connectivity.

The NL20S supports a universal input voltage of 108 V to 305 V at 50 or 60 Hz and provides an output voltage of 24 V to 42 V (0.1 to 0.75 A ±5%) at 85% efficiency with a no-load power consumption of <250 mW. Capable of high switching frequencies, this design maintains a high power factor >0.9 with low Total Harmonic Distortion (<20%).

(All images sourced from NexGen)
