Taoglas FXP280 Flexible PCB 868 MHz Antenna For LoRa And Sigfox ISM Bands

Evaluation Board

ipXchange, Electronics components news for design engineers 310 310

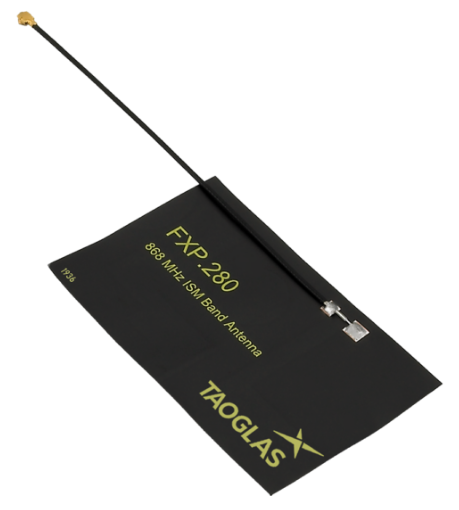

Taoglas’ FXP280 is a flexible PCB antenna serving the 863-870 MHz band for LoRa and Sigfox IoT applications including medical devices, smart monitoring, and smart home. This antenna features a 75 x 45 x 0.2 mm rectangular peel-and-stick design for easy mounting onto a plastic enclosure. An I-PEX MHF I (U.FL comp) connector with a 100 mm cable comes as the default interfacing option for connection to your PCB; further consultation with Taoglas may result in alternative options for your project.

Key RF performance characteristics include a maximum input power of 5 W, -16 dB return loss, 52% efficiency, and 1.8 dBi gain; these measurements were obtained with the FXP280 mounted on a piece of ABS with a thickness of 2 mm. The FXP280 operates with a linearly polarised output at 50 Ω and is suitable for operation at -40°C to 85°C. The operating characteristics of this antenna are provided in further detail as part of this datasheet.

If you’re looking to use this antenna for a commercial application, fill out the form below, and ipXchange will put you in touch with Taoglas. Custom and alternative models are also available to meet different project and frequency requirements, so consider any application the start of a conversation to find the right solution, rather than a simple nod towards the FXP280 antenna specifically.
