Bosch BMV080: Introducing the world’s smallest fanless particulate matter sensor.

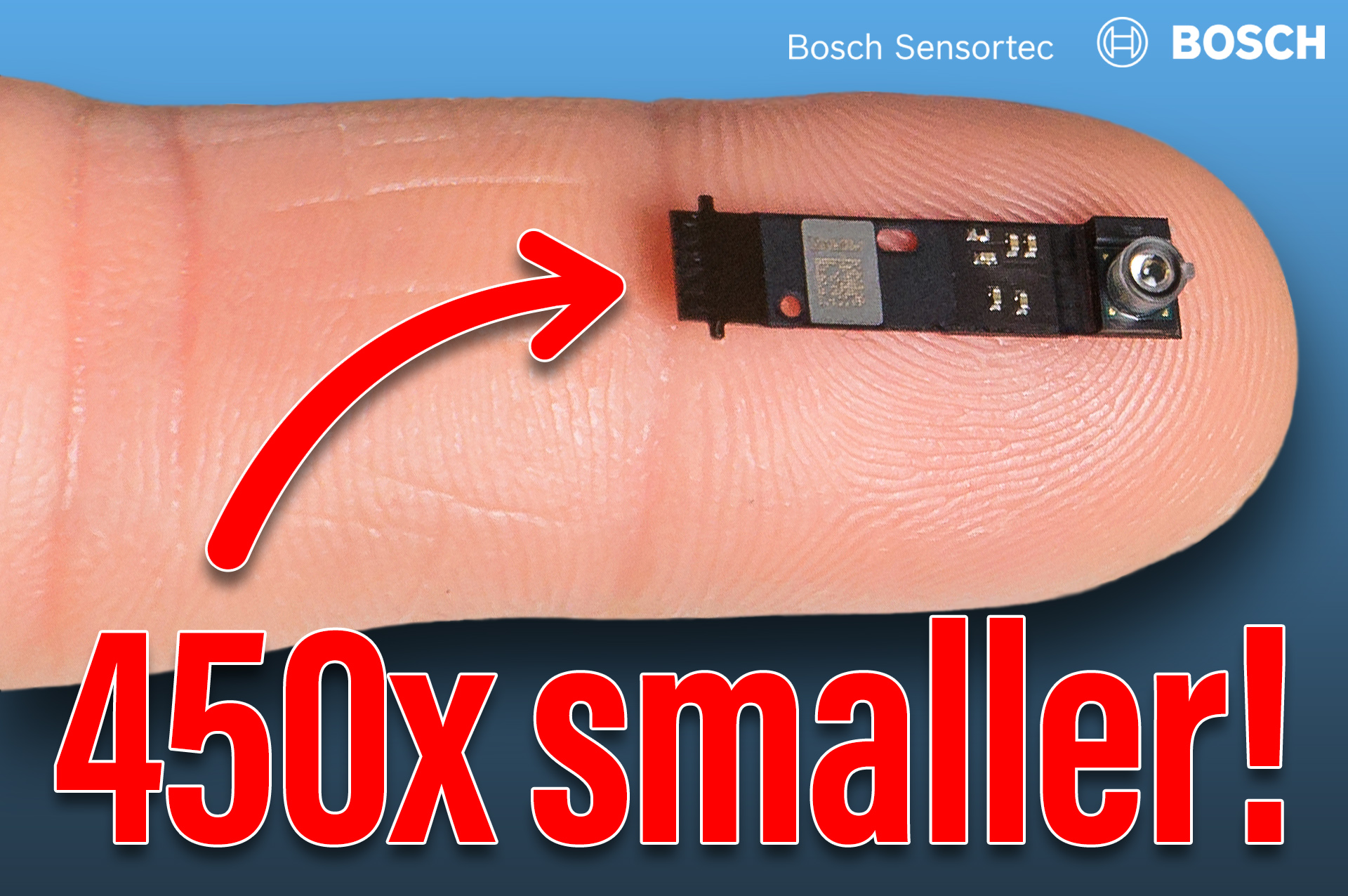

Bosch Sensortec has launched the BMV080, the world’s smallest fanless particulate matter sensor, setting a new benchmark for air quality monitoring in compact embedded applications. Measuring just 4.2 × 3.5 × 3 mm, this fully integrated optical sensor enables real-time detection of PM1 and PM2.5 concentrations — and soon, PM10 — in a module that’s 450 times smaller (by volume) than traditional air quality sensors.

This innovation opens up air quality monitoring for product categories previously considered too small or too noise-sensitive for particulate sensing.

Why Engineers Should Rethink PM Sensing

Conventional PM sensors use a mechanical fan and controlled airflow to maintain stable particle measurements. While reliable, these systems come with serious trade-offs: they are large, noisy, power-hungry, and mechanically fragile. This has historically limited their use to desktop-sized devices or externally mounted units.

The BMV080 solves this through a fanless, free-space optical design, removing the need for airflow channels or enclosed sensing chambers. Instead, a class 1 laser illuminates particles in ambient air, and a photodiode captures scattered light. Bosch’s proprietary algorithm then calculates the particle concentration based on these scatter patterns.

This software-based compensation allows accurate PM measurement in open air, without sacrificing resolution or repeatability. The result is a high-performance PM sensor that works without moving parts — meaning it’s silent, low-power, dust-resistant, and easily embeddable into even wearables or smartphone-class hardware.

What the BMV080 Measures — and Why It Matter

• PM2.5: Particles ≤ 2.5 µm that can bypass nasal filters and embed deep in the lungs, with links to respiratory illness and cardiovascular stress.
• PM1: Even smaller particles that may reach the bloodstream and carry higher health risks.
• Coming soon — PM10: Larger particles such as pollen and dust, offering broader environmental monitoring.

The BMV080 reports real-time values in µg/m³, with I²C or SPI communication. Engineers can expect 1 µg/m³ resolution, with maximum data output of 1 Hz, and minimal power consumption.

Engineering Advantages in Integration

Design flexibility is one of the key benefits of this sensor. Because it doesn’t require an internal fan or airflow enclosure, engineers are free to design around aesthetic and environmental constraints. Integration into sealed or waterproof enclosures is feasible, thanks to the sensor’s passive airflow model and lack of mechanical inlets.

Key features include:

• Noiseless operation — ideal for consumer wearables and home products.
• Dustproof design — robust for real-world applications without frequent recalibration or maintenance.
• Small aperture — only a 1 mm window is needed to expose the optical sensor to ambient air.

Evaluation Tools and Software Support

Bosch supports rapid prototyping through its BMV080 shuttle board, which connects via header pins to a standard Bosch application board. This makes it easy to start development using Bosch’s existing microcontroller environments and PC-connected test setups.

Software support includes:

• I²C/SPI drivers
• Mass concentration APIs for PM1 and PM2.5
• Integration-ready SDKs
• GitHub-hosted example projects
• Plug-and-play PC tools for sensor validation and data logging

For developers building products under tight timelines or compact constraints, the BMV080 provides a complete, validated solution.

Applications: Where the BMV080 Shines

• Smart thermostats and HVAC systems: Real-time air quality data can trigger ventilation or filtration.
• Compact IoT devices: Environmental monitoring without compromising device footprint.
• Wearable health products: Silent and low-power PM sensing for continuous exposure monitoring.
• Smart home and building automation: Seamless integration into connected platforms.
• Medical and cleanroom tools: Passive monitoring for controlled environments.

Even smart masks have been proposed as future applications, with the BMV080 offering pre- and post-filtration air quality comparison in a wearable form factor.

Handling and Deployment Consideration

Due to the sensor’s compact optical construction, it should only be handled by the reinforced stiffener frame. Touching the flex PCB or the exposed optical window may degrade performance. Bosch provides clear documentation for proper handling, aperture integration, and electrostatic precautions.

If you’re designing next-gen environmental sensing into your product, the Bosch BMV080 offers the rare combination of professional-grade accuracy, fanless silent operation, and unmatched integration flexibility.
